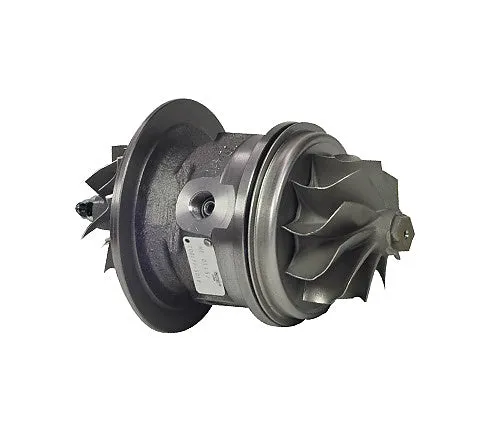

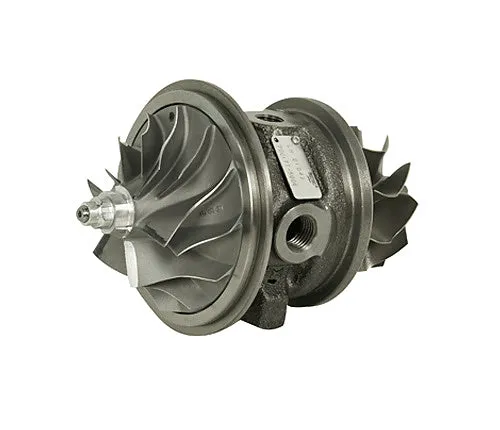

The center hub rotating assembly (CHRA) houses the shaft that connects the compressor impeller and turbine. Garrett components are some of the strongest and most reliable units for your turbo rebuilding needs.

New 8mm Ceramic Ball Bearing cartridge
Compressor side: TRIM 52 (76.2mm-57.0mm)
Turbine side: TRIM 84 (60.0mm-56.0mm)
Bearing housing: Oil & water cooled system

Fit on
836028-5003S / 700382-5012S - GT3076R
788550-5003S  -  Mitsubishi Evo X kit 0.94 A/R
788550-5004S  - Mitsubishi Evo X kit 0.73 A/R

Applicable Garrett part numbers
700177-5007S
